PS-F Series - Eccentric Drive

Leading product distributor in market

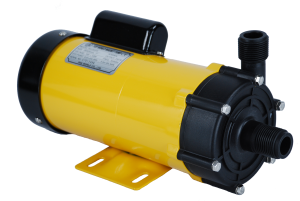

NH-125PS-F

Max Flow75 L/Min / 85 L/Min

Max Head3.3 m / 4.7 m

Motor Power65 W

Wetted-endETFE

ConnectionHose – 26mm x 26mm
Union – 20A x 20A
Thread – NPT 1″ x 1″ , G 1″ x 1″

with original single phase motor

125PS-F(Installation Drawing – Hose)

125PS-F(Installation Drawing – Thread)

125PS-F 60Hz S.G 1

125PS-F 50Hz S.G 1

APPLICATION

Filter, Chemical Transfer, Heat Transfer, Computer Cooling, Refrigeration Systems, Ice Makers and Ice Flankers, Vending Equipment, Carbon Arc Furnace Cooling, Microchip Manufacturing, Aquariums, Semi-Conductor, Battery Industry, MC/CNC Machinery, Laboratory Application, Pharmaceutical

NH-150PS-F

Max Flow60 L/Min / 70 L/Min

Max Head5.6 m / 8.2 m

Motor Power90 W

Wetted-endETFE

ConnectionHose – 26mm x 26mm
Union – 20A x 20A
Thread – NPT 1″ x 1″ , G 1″ x 1″
Flange – 25A x 25A

with original single phase motor / with original 3 phase motor

150PS-F-3(Installation Drawing – Flange)

150PS-F(Installation Drawing – Flange)

150PS-F-3(Installation Drawing – Thread)

150PS-F(Installation Drawing – Thread)

150PS-F-3(Installation Drawing – Hose)

150PS-F(Installation Drawing – Hose)

150PS-F 60Hz S.G 1

150PS-F 50Hz S.G 1

APPLICATION

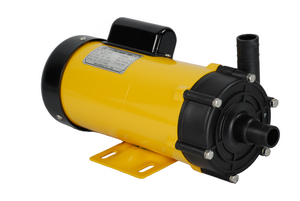

NH-200PS-Z

Max Flow35 L/Min / 37 L/Min

Max Head12.5 m / 16.0 m

Motor Power180 W

Wetted-endPPG

ConnectionHose – 26mm x 26mm
Union – 20A x 20A
Thread – NPT 1″ x 1″ , G 1″ x 1″
Flange – 25A x 25A

with original single phase motor / with original 3 phase motor

200PS-Z-3(Installation Drawing – Flange)

200PS-Z(Installation Drawing – Flange)

200PS-Z-3(Installation Drawing – Thread)

200PS-Z(Installation Drawing – Thread)

200PS-Z-3(Installation Drawing – Hose)

200PS-Z(Installation Drawing – Hose)

200PS-Z 50Hz S.G 1

200PS-Z 60Hz S.G 1

APPLICATION

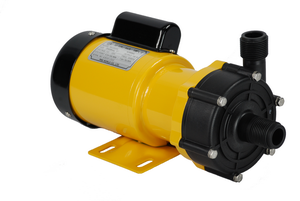

NH-200PS-F

Max Flow70 L/Min / 70 L/Min

Max Head7.5 m / 7.5 m

Motor Power180 W

Wetted-endETFE

ConnectionHose – 26mm x 26mm
Union – 20A x 20A
Thread – NPT 1″ x 1″ , G 1″ x 1″
Flange – 25A x 25A

200PS-F-3(Installation Drawing – Flange)

200PS-F(Installation Drawing – Flange)

200PS-F-3(Installation Drawing – Thread)

200PS-F(Installation Drawing – Thread)

200PS-F-3(Installation Drawing – Hose)

200PS-F(Installation Drawing – Hose)

APPLICATION

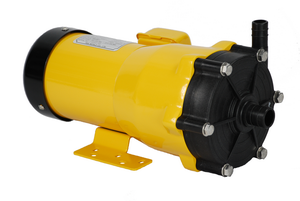

NH-250PS-F

Max Flow80 L/Min / 80 L/Min

Max Head11.5 m / 11.5 m

Motor Power250 W

Wetted-endETFE

ConnectionHose – 26mm x 26mm
Union – 20A x 20A
Thread – NPT 1″ x 1″ , G 1″ x 1″
Flange – 25A x 25A

250PS-F-3(Installation Drawing – Flange)

250PS-F(Installation Drawing – Flange)

250PS-F-3(Installation Drawing – Thread)

250PS-F(Installation Drawing – Thread)

250PS-F-3(Installation Drawing – Hose)

250PS-F(Installation Drawing – Hose)

APPLICATION

NH-275PS-F

Max Flow110 L/Min / 120 L/Min

Max Head14.8 m / 17.0 m

Motor Power250 W

Wetted-endETFE

Connection Hose – 26mm x 26mm
Union – 20A x 20A
Thread – NPT 1″ x 1″ , G 1″ x 1″
Flange – 25A x 25A

275PS-F-3(Decomposition Drawing – Flange)

275PS-F(Decomposition Drawing – Flange)

275PS-F-3(Decomposition Drawing – Hose)

275PS-F(Decomposition Drawing – Hose)

275PS-F-3(Construction Drawing – Flange)

275PS-F(Construction Drawing – Flange)

275PS-F-3(Construction Drawing – Hose)

275PS-F(Construction Drawing – Hose)

275PS-F-3(Installation Drawing – Flange)

275PS-F(Installation Drawing – Flange)

275PS-F-3(Installation Drawing – Thread)

275PS-F(Installation Drawing – Thread)

APPLICATION

NH-250PS-F-3E

Max Flow120 L/Min / 120 L/Min

Max Head12.5 m / 14.0 m

Motor PowerJEM – 0.2 kW

Wetted-endETFE

ConnectionHose – 26mm x 26mm
Union – 20A x 20A
Thread – NPT 1″ x 1″ , G 1″ x 1″
Flange – 25A x 25A

250PS-F-3E(Installation Drawing – Flange, EUROPE)

250PS-F-3E(Installation Drawing – Thread, EUROPE)

250PS-F-3E(Installation Drawing – Hose, EUROPE)

250PS-F-3E(Installation Drawing – Flange)

250PS-F-3E(Installation Drawing – Thread)

250PS-F-3E(Installation Drawing – Hose)

250PS-F-3E(Installation Drawing – Flange, W O motor)

250PS-F-3E(Installation Drawing – Thread, W O motor)

250PS-F-3E(Installation Drawing – Hose, W O motor)

APPLICATION

NH-300PS-F

Max Flow50 L/Min / 50 L/Min

Max Head20.0 m / 25.0 m

Motor Power330 W

Wetted-endETFE

ConnectionHose – 26mm x 20mm
Union – 20A x 16A
Thread – NPT 1″ x 3/4″ , G 1″ x 3/4″

300PS-F-3(Installation Drawing – Thread)

300PS-F(Installation Drawing – Thread)

300PS-F-3(Installation Drawing – Hose)

300PS-F(Installation Drawing – Hose)

APPLICATION

AD Air Operated Diaphragm Pump

Albin Pump has developed and patented a revolutionary AODD pump.

The AODD is a compact diaphragm pump that is able to be mounted in any orientation, to fit in the tightest spaces.

Critical components can be quickly accessed while still connected in-line, reducing downtime. The improved valve design has resulted in a reduction in sound during operation.

The Albin AD pump is designed for a large capacity and long service life. Compared to traditional AODD pumps, it offers 70% lower pulsation, 30-50 % lower air consumption, noise reduction and 3–5 times longer operation time between service intervals.

The compact outer measurements and capability to install the pump upside down, sideways or vertically means flexibility during installation and set up.What’s more, it is designed so that all vital parts are easily accessible without having to remove the pump from the pipe system, greatly minimizing downtime.

All of these improvements result in lower operational costs, reduced cost for spare parts and improved overall economy.

Advantages of our AD air operated double diaphragm pump:

Revolutionary air valve design and central flow technique
Less pulsation (-70%)*
Lower air consumption (-35%)*
Lower maintenance costs*
Longer diaphragm lifetime (3-5 times)*
Compact design and low weight
Total flexibility in installation – easy to integrate
Easy service – less downtime – lower lifecycle cost
More cost-effective solutions for both OEM manufacturers and end users

*Relative to industry competitors

	Metric	Imperial
Capacity	up to 130 l/min	up to 34.34 GPM
Viscosity	up to 3,000 cps	up to 3,000 cps
Temperature of pumped liquid	up to 60℃	up to 140℉
Differential pressure	up to 7 bar	up to 101.5 PSI
Discharge pressure	up to 7 bar	up to 101.5 PSI
Achievable suction	up to 0.7 bar	up to 10.2 PSI

ALX High Volume Hose Pump

The ALX150 pump provides one of the highest peristaltic pump flow rates in the world, up to 150 m3/h (660.4 GPM).

The Albin Pump ALX Series peristaltic pump provides two additional benefits from standard hose pumps: a lower speed to achieve a given flow rate and rotating rollers for soft hose compression. These two features greatly increase hose life and reduce power consumption.

After years of development, the ALX150 hose pump was introduced for applications ranging from sea tanker overloading to transferring high-solids thickener underflow slurry, where fast and reliable offloading is key to process profitability.

Our pump uses soft action rotating rollers to compress the hose instead of hard fixed shoes that are standard on other industrial hose pumps. The advantage of our rollers is the gentle compression of the hose, losing very little power from surface friction. The soft rollers reduce power consumption dramatically which contributes to longer-life. The pump can be ran at lower speeds and still deliver up to 150 m3/h (660.4 GPM) with excellent hose life due to 83.33 liters per revolution.

Typical applications for the ALX pump include:

Effluent processing
Mining waste/wake transfer
Mud slurry transfer
Municipal waste transfer
Sea tanker offloading
Sand slurry transfer
Tailings transfer
Thickener underflow feed
Fish boat offloading

	Metric	Imperial
Capacity	up to 150 m3/h	up to 660.4 GPM
Viscosity	up to 12,000 cps*	up to 12,000 cps*
Temperature of pumped liquid	up to 60℃**	up to 140℉**
Differential pressure	up to 7.5 bar***	up to 110 PSI***
Discharge pressure	up to 7.5 bar	up to 110 PSI
Achievable suction	up to 0.6 bar*	up to 8.7 PSI*

* Varies depending on the pump dimension/execution, as well as on the speed and on the tube material

** At a room temperature of 20℃ (68℉). Furthermore, it varies depending on the pumped fluid, on the hose quality and on the motor construction.

*** Varies depending on the hose

ALP Low Pressure Tube Pump

Reduce Maintenance Downtime

The ALP Low Pressure Tube Pump is suitable for pumping and dosing a wide range of media:

Low to high viscous fluids
Pasty, pure, or neutral fluids
Aggressive or abrasive liquids
Mixed-media or those prone to frothing

The ALP pump is able to transfer suspended solids, common in the following industries: paint, dairy and beverage, meat and fish processing, pharmaceutical and cosmetics, waste water and water treatment, chemical and petrochemical industries, pulp and paper, textile, soap and fats, building, ceramics.

Albin Pump's ALP series is a lower pressure tube pump (operable up to 4 bar) that has versatile product offerings and capabilities:

Accuracy and repeatability in dosing and metering applications
Low overall cost of ownership
Compact footprint
Lubrication is not required for operation.
Robust ball bearings

	Metric	Imperial
Capacity	up to 10 m3/h	up to 44.03 GPM
Viscosity	up to 15,000 cps*	up to 15,000 cps*
Temperature of pumped liquid	up to 135℃**	up to 275℉**
Differential pressure	up to 4 bar***	up to 58.01 PSI***
Discharge pressure	up to 4 bar	up to 58.01 PSI
Achievable suction	up to 0.6 bar*	up to 8.7 PSI*

* Varies depending on the pump dimension/execution, as well as on the speed and on the tube material

** At a room temperature of 20℃ (68℉). Furthermore, it varies depending on the pumped fluid, on the hose quality and on the motor construction.

*** Varies depending on the pump dimensions and on the hose quality

ALH High Pressure Hose Pump

ALH is our flagship peristaltic pump, built for high pressure applications up to 15 bar, with 16 sizes ranging up to 88 m3/h (387 gpm).

We have combined the best available materials with smart design solutions in order to maximize running time and minimize maintenance. This pump summarizes what we at Albin Pump want to achieve: better Pump Solutions for our customers. Our design enhances the pump’s simplicity and robust principle.

Feature
Specification

Two shoes mounted at 180° on a rotating wheel compress successively a reinforced rubber hose that contains a fluid to be pumped.
The compression of the hose by the rotating shoes creates continuous suction at the inlet of the pump and pushes the fluid to the outlet of the pump.
The pump casing contains a lubricant that reduces friction and insures the best pump performance with a minimum of maintenance.
The pumped liquid is in contact with only the interior of the rubber hose, thus permitting the pumping of a wide variety of reactive fluids.
Learn more about how peristaltic pumps work.

	Metric	Imperial
Capacity	up to 88 m3/h	up to 387.4 GPM
Viscosity	up to 60,000 cps*	up to 60,000 cps*
Temperature of pumped liquid	up to 85℃**	up to 185℉**
Differential pressure	up to 15 bar***	up to 220 PSI***
Discharge pressure	up to 15 bar	up to 220 PSI
Achievable suction	up to 0.9 bar*	up to 13.05 PSI*

* Varies depending on the pump dimension/execution, as well as on the speed and on the tube material

** At a room temperature of 20℃ (68℉). Furthermore, it varies depending on the pumped fluid, on the hose quality and on the motor construction.

*** Varies depending on the pump dimensions and on the hose quality

KB Series & KM Series Peristaltic Metering Pumps

The Albin Pump portfolio has expanded to include the KB and KM Series cased-drive tubing pumps. KB is a versatile and economical peristaltic metering pump for high-precision dosing in water treatment or wastewater treatment applications. These revolutionary new pumps offer:

Next generation safety features:
- A patent-pending offset rotor assembly releases tube compression during maintenance
- Tube changes do not require users to manipulate the tube while rotor is turning
- Offset rotor allows drain and flush of tube prior to removal
A best-in-class user experience featuring one-button switching between local and remote operation
No need for complex, multi-step menu navigation each time a mode change is required
Basic pumps with local control, with an optional upgrade to include remote control protocols
KM Series pumps feature 10,000:1 turndown, NSF-61 certification (pending), and a 5-year warranty

Each rotation gives the same displacement, which provides excellent chemical metering ability
Suction lift up to 30 feet (9 meters)
No backflow or slip allowed
Self-priming peristaltic metering pump delivers smooth chemical feed
No moving parts in liquid path – tubing is the only wetted item
No check balls or check valves
No damage from running dry
Pump will not vapor lock or air bind

KB Series Peristaltic Metering Pump

	Metric	Imperial
Capacity	600 l/h	158.5 GPH
Viscosity	12,000 cps
Temperature of pumped liquid	80℃	176℉
Discharge pressure	8.6 bar	125 PSI
Enclosure Rating	IP66/NEMA 4X
Turndown Ratio	200:1
Control Options	SCADA, Modbus TCP/IP, Modbus RTU, Profinet, EtherNet/IP
Power Required	115/230V, 50/60 hz, 1 ph
Motor	BLDC

KM Series Peristaltic Metering Pump

	Metric	Imperial
Capacity	600 l/h	158.5 GPH
Viscosity	12,000 cps
Temperature of pumped liquid	80℃	176℉
Discharge pressure	8.6 bar	125 PSI
Enclosure Rating	IP66/NEMA 4X
Turndown Ratio	10,000:1
Control Options	SCADA, Modbus TCP/IP, Modbus RTU, Profinet, EtherNet/IP
Power Required	115/230V, 50/60 hz, 1 ph
Motor	BLDC

Straightforward Control
PD Series Pumps

Designed to Last
Introducing the new PD Series Chemical Metering Pump: designed specifically for industrial water treatment applications. The new PD Series pump adds advanced technology to one of LMI’s most popular solenoid pump. Available in two models, Manual and Enhanced, the PD Series pump fits seamlessly into your water treatment process while adding convenience and value to your application.

The Manual model offers straightforward control without the need for tedious calculations. Its split-scale dial ensures precision, even at lower flow rates. The Enhanced model offers external control and a large graphical display to provide intuitive access to advanced features.

Manual Model:

Improved Drive Mechanism for more powerful stroke consistent steady state accuracy, and reliable efficiency
Universal Power Supply provides maximum flexibility
Simplified Capacity Setting with constant stroke range to maintain calibration across an adjustable range
Intelligent Drive Control electronics dynamically compensate for temperature and voltage conditions to provide consistent performance (patent pending)
Robust FASTPRIME™ Liquid Ends with over 10 years of proven performance

Enhanced Model:

Large Graphical Display allows easy navigation and configuration
External Control Inputs provide convenient remote access to automate your process
Calibration Assist provides an easy to use calibration process
System & User Totalizers acts as an odometer for your pump
STAYPRIME™ Degassing Technology automates the priming cycle

Standard Features

ETL, NSF 61, NSF 372, CE Certifications

Output Range:

.002-2.0 GPH (.008 – 7.6 LPH)

Pressure Range:

50-450 PSI (3.4-30.6 BAR)

Max Stroke:

160 SPM

Installation:

Indoor / Outdoor

Supply Voltage:

115-230V / 50-60Hz

Higher Output
Series G Metering Pump

A rugged design for the toughest challenge, now with NSF/ANSI 61 and 372 certification.

Available in two motor driven models – the SD and the SG – the Series G Metering Pumps feature rugged aluminum construction specifically engineered to handle higher output applications in harsh environments. Certified with NSF / ANSI 61 and 372 for municipal compliance and safety assurance, the Series G is the right choice when choosing a pump for water treatment applications, like coagulation and flocculation.

By combining a heavy-duty industrial drive with state-of-the-art design, the Series G offers a mechanicallyactuated diaphragm that provides smooth output with reduced potential for system shock and hydraulic oilcontamination.

External speed control, stainless steel fasteners and NSF certifications make this powerhouse pump perfect forwater treatment applications.

Compared to solenoid pumps or lost motion designs, the Series G pumps offer a robust, metallic worm gear drive along with an industrial duty variable eccentric stroke adjustment mechanism to yield a 10 to 1 turn down ration with smooth velocity profiles
This pump is designed to last. The PTFE, high performance diaphragm design eliminates the stresses inherent in most designs – plus, all gear components operate in an oil bath for long life.
Available in three frame sizes, the Series G pumps are able to accommodate a wide selection of liquid ends
Manual controls allow for precise stroke length adjustment

Standard Features

High flow rates up to 312 GPH (1180 Liters/hr.)
Mechanically actuated diaphragm liquid end eliminates flow restrictions
Durable, metallic housing designed to withstand tough environments
High efficiency motors minimize heat buildup
Reliable low flow performance is a result of high performance check valves with machined seats
Precision stroke adjustment can be operated while the pump is running or stopped
Steady state accuracy – ± 1% of full capacity over the 10 to 1 turndown ratio
Liquid Temperature Range – 14° to 122° F (-14° to 50° C)
Coating includes a 2-part epoxy
UL, CUL, ETL certified
Now NSF / ANSI 61 and 372 certified for municipal compliance and safety assurance

Optional Features

Safety valves
Back pressures valves
Pulsation dampeners
Degassing valve
Repair & preventive maintenance kits
Calibration columns

Output Codes with Standard Liquid End

Industry Standard
Series B Chemical Metering Pump

Year after year of reliable performance.
An industry standard for over 20 years, the Series B Chemical Metering Pump is a rugged, reliable choice for theharshest environments.

Its 100% enclosed chemical resistant housing provides this solenoid unit with ultimate protection, making it ideal forcorrosive chemical dosing.

With a variety of models and options available, you have full flexibility to control stroke length and frequency,pressure capacity, pulse / 4.20 mA inputs and more.

Rugged construction and time-tested design make the Series B pumps a consistent performer
With rigid chemically-resistant housing and encapsulated electronics – this solenoid pump is designed to last year after year.
Available with multiple options, the Series B pumps are able to accommodate a variety of applications

Standard Features

Adjustable stroke frequency and the flexibility of up to 1000:1 turndown ratio
Manually adjustable stroke length provides accurate pump output adjustment
NEMA 4X/IP65 enclosures for protection against corrosive environments
Time-tested electronics for reliable, repeatable performance
Totally encapsulated electronics for protection against moisture and corrosive conditions
Inputs for low level switch available on certain models
Models with external pacing for flow proportional applications
UL, CUL, NSF 50, NSF 61, NSF 372, CE Certifications

Optional Features

Four function valve
AUTOPRIME™ liquid End
High viscosity liquid end
Low level float switch
Repair & preventive maintenance kits
Calibration columns

Output Codes with Standard Liquid End

The rugged construction and superior reliability of the Series B pumps make them an ideal product for a variety of applications in harsh environments, such as:

Water Treatment
Waste Water Treatment
Industrial Processing
Agriculture
Chemical Processing
Other – Contact your local representative

Intelligent Control
EXCEL® XR Series Pumps

Engineered to Meet Today’s Most Demanding Water Treatment Standards

Featuring enhanced performance and process control capabilities.

The EXCEL® XR metering pump is a mechanically actuated diaphragm pump driven by advanced variable speed technology to provide the most accurate and reliable performance in the industry. This proven technology is easy to maintain and will provide years of maximum up-time service. Available in two control configurations, manual and enhanced, the EXCEL XR pump fits seamlessly into the process control requirements of every application. The Manual model includes the ideal level of standard features, while the Enhanced model provides a full range of capabilities. All models come standard with a four-color backlit display, multilanguage options (English, French, Spanish, Portuguese, and Chinese), and remote operation options, all in a design platform that can adapt as technology evolves. The EXCEL XR metering pump provides everything you need for complete control of your process.

Expanded capacity to 53 GPH (201 LPH) to meet a wider range of specifications in the same footprint.
Refreshed user interface making programming inputs and out puts easier than ever.
Highly efficient mechanically actuated diaphragms
Maximum evacuation on every stroke regardless of capacity setting
Universal technology platform
Able to adapt as technology evolves
Advanced easy-to-use operation interface
Backlit color display and enhanced settings enable maximum application customization
Rugged construction
Upgraded NEMA 4X/IP 65 housing and protective cover for the harshest environments
Remote connectivity
Control and feedback in real time
Universal power supply
Providing maximum flexibility

Standard Features

ETL, NSF 61, NSF 372, CE Certifications

Increased capacity to 53 GPH (201 LPH) to meet a wider range of specifications in the same footprint.
Refreshed user interface making programming inputs and outputs easier than ever.
Advanced 2-way communications via Profibus DP or Modbus RTU protocols
Innovative drive system achieves +/-1% accuracy and 1000:1 turn-down.

Designed for the specific requirements of municipal and industrial water and waste treatment, the EXCEL XR pump is suitable for a wide range of applications.

Water treatment
Wastewater treatment
General industry
Agricultural
Chemical
Oil & gas
Power generation
Pulp & paper
Textiles
Other (contact your local authorized representative)

Up to the Challenge
EXCEL AD Series Pump

Designed to meet your most challenging water treatment needs.
Designed specifically for commercial and industrial applications, the EXCEL® AD is a chemical feed application.

This line includes an advanced design fitting system for secure, leak-proof tubing or NPT connections. Every pump comes standard with FASTPRIME™ liquid ends. If pumping off-gassing liquids, select the (optional) AUTOPRIME™ liquid end. High-viscosity liquid ends (optional) are also available for pumping high viscosity liquids.

With an easy-to-read LCD user interface, external pacing, alarms and pulse/4-20 mA input and output capability – the EXCEL® AD pump has the power and flexibility you need to accurately perform in the harshest industrial or municipal environments.

Adjustable stroke frequency with the flexibility of up to 1000:1 turndown ratio
Universal power supply
Double-ball check valves for improved accuracy and reliability
FastPrime liquid ends allow you to efficiently prime the pump without depressurizing the discharge line
Digital and analog outputs provide convenient user control interface with remote systems
Easy-to-read LCD interface gives you a consistent clear view of content
A selection of options allows you to customize pump performance to your application

Standard Features

Push button controls
LCD user interface
Durable and lockable clear cover
Theoretical flow rate display
NEMA 4X/IP-65 enclosure
Industrial grade IP-68 external signal/equipment interface
Selectable alarms (9 Series)
Backlit graphical display (9 Series)
Separate pulse/4-20 mA input and output connections (9 Series)
Internal/External mode indicated with a wired output (9 Series)
3-year Warranty
UL, NSF 61, NSF 372, CE Certifications

Optional Features

Four function valve
AUTOPRIME™ liquid End
High viscosity liquid end
Dual low level float switch
Digi-Pulse flow monitor
Repair & preventive maintenance kits
Calibration columns

The overall versatility and design of the EXCEL® AD chemical metering pump make it an ideal choice in a widerange of industries:

Water Treatment
Waste Water Treatment
Chemical Processing
Food & Beverage
Oil & Gas
General Industry
Power Generation
Pulp & Paper
Textiles
Other – Contact your local representative

Valves and Accessories for Dosing Processes

Milton Roy offers a complete line of accessories designed to make even the most demanding dosing processes work smoothly. Pressure relief valves, backpressure valves, and pulsation dampeners are just a few of the items available to meet the needs of your process.

Pinch valves control the flow of fluids (liquid, gas or power) and provide a leak-proof seal when closed. They are cost-effective, simple to install and require little maintenance.

The valves are made up of a valve body and a cylindrical sleeve reinforced with natural or synthetic rubber. Typically in an open state, the valve is closed by the application of pressure between the valve body and the sleeve. This pressure is created by a fluid, usually compressed air,that crushes the sleeve in a particular direction, completely closing the valve.

Available in cast iron, aluminum and PVC materials, we offer a complete range of full-bore valves suitable for a range of applications:

Acids: hydrochloric, nitric, sulfuric, hydrofluoric, etc.
Alkalis: sodium hydroxide, ammonia, potassium, phosphates, sodium bicarbonate, etc.
Viscous or abrasive liquids: seawater, wastewater, lime wash, paper pulp, paint, sludge, soot, clay slip, etc.
Edible liquids: beer, wine, cocoa butter, edible oils, beet juice, milk, sugar, syrups, etc.
Powdered products: cement, flour, sand, talc
Other fluids: reagents for water treatment, organic solvents, fertilizers, etc

The “MRV” series back pressure and pressure relief valves help to maintain a set pressure or relieve excess pressure on the pump and system.

The 2-port design allows each valve to be used both as a pressure relief and back pressure valve to ensure accurate metering and pump performance.

Available in a range of materials, pressure adjustability for 0 to 150 psi, and various connection options, these valves enable installation fit and flexibility for your operations. An optional port enables the use of a standard pressure gauge to see the results of field adjustments.

Calibration columns are a fast, easy, economical means of checking flow rates of your Milton Roy metering pumps.

The devices perform periodic monitoring and verification of the pump flow rate to ensure optimal performance and injection accuracy. In addition, they can be used to verify pump capacity after routine maintenance. Available in six sizes, the units are easily installed and are a great addition for prime pump performance.

Pulsation dampeners are pressure vessels that control pressure fluctuations and spikes in liquid piping systems.

They contain a flexible bladder that separates an inert pressurized gas (air or nitrogen) from a system fluid in the lower chamber. Available in a range of chemically resistant materials, pulsation dampeners remove virtually all hydraulic shock, enhancing all-around performance and reliability of fluid flow in industrial and chemical transfer applications.

Accurate Metering Pump
Side-Entry Series

Compact. Powerful. Consistent Results

Mixing technology for all your crude oil & derivatives storage tanks

Typically, large storage tanks require the constant mixing of contents, but roof-mounted agitators cannot support the heavy load. In response, Milton Roy Mixing has developed a specific range of side-entry mixers for large-volume storage tanks.

Our side-entry mixer is mounted quickly and easily to the tank flange and delivers the most effective blending results in an extremely efficient unit. Our innovative small diameter SABRE® impeller allows for reduced energy consumption and easy installation.

In addition, we can ensure proper agitation using numerical simulation of fluid flows (CFD). This helps to forecast and predict the storage tanks mixing with no dead zone, and lower energy consumption compared to conventional solutions. We can also provide an adjustable agitator to increase the scope enclosure.

The side-entry mixer concept is driven by four top priorities: safety, reliability, process optimization and easy, cost-effective maintenance.

Large mixing volumes. The mixer is designed for tanks up to 200,000 m³ (1.3 MM barrels). The high liquid jet amplitude propelled by our impeller allows the moving of large volumes using less power.
Easy installation and maintenance. This compact, side-entry mixer has been designed specifically to mount on the lateral flange of the tank and with lightweight, custom impellers, it can installed quickly and easily. Its exclusive seal shut off device allows for safe, fast and easy maintenance or replacement of the mechanical seal without emptying the tank.
Low power consumption. Our innovative, proven SABRE impeller uses less energy to effectively mix the tank contents.

Fixed or variable angle
Belt or Gear driven
316L Ball for variable angle configuration
High efficiency 4 blade Sabre® impeller
Tank shut off device
Carbon steel construction, single mechanical seal
Operating capacity: from 100 m3 to 200,000 m3 (1.3 MM barrels)
Rated power: from 7.5 to 55 kW (10 to 75 HP)
Rotation speed: from 200 to 1,500 rpm
Operating temperature: from 0° to 250° C (40° to 482° F)
TEFC, EX Proof, IEEE 814 available

Oil & Gas

When crude oil is produced, it’s accompanied by sand, salt and other unwanted debris.

Until the crude is delivered to the refinery, bottom sludge & water (BS&W) can settle on the bottom of a tank. Milton Roy Mixing’s Side Entry Mixer keeps BS&W in suspension by generating the right fluid velocity distribution to provide the highest and most efficient performance.

Other industries

Water Treatment
General Blending
Food and Beverage

Heavy-Duty Mixers
ROBIN® Series

Milton Roy Mixing’s customized top-entry and bottom-entry mixers for optimized efficiency ROBIN top-entry and bottom-entry agitators are custom-made and perfectly attuned to meet the specific characteristics of complex processes in extreme conditions.

Packed plunger, PTFE or metallic diaphragm liquid ends available
Liquid end body in 316L S.S., 17-4P-H, PVC or PVDF. Other materials such as Alloy 20, Hastelloy®, super Duplex available upon request
Diaphragms in PTFE or 316L stainless steel; plunger in Z55CDV17 steel or chromium oxide coated
6 stroke speeds/gear ratios available with 50 Hzmotor: 39, 59, 100, 120, 144 and 180 spm. 5 stroke speeds/ gear ratios with 60 Hz-motor: 47, 71, 120, 144 and 173 spm
Manual, electrical or pneumatic stroke length adjustment
IEC or NEMA mounting, motor for frequency variation
Electric equipment for non-hazardous or hazardous area, large variety of protections and insulations
Conforms to ATEX CE EX II 2G/D c T4/T3 with ATEX motors
Optimum protection for critical processes or pumped fluids: double or triple diaphragm, diaphragm failure detection, temperature probes
Food grade design (in accordance with CE 1935-2004)
Special valves for any type of fluid (including concentrated sulphuric acid and slurries)
Remote head, cooling/heating jacket to operate in processes requiring low/extreme fluid temperatures
Full set of connections: screwed or flanged connectors (ANSI, DIN or ISO)
Wide range of accessories available to complete your dosing installation

Chemical / Petrochemical: chemical injection of additives, injection of co-catalyst such as TEAL for polyethylene and polypropylene, injection of sulphuric acid into water to produce diluted sulphuric acid
Food and Beverage: injection of enzymes in starch production, injection of caustic soda for process water neutralization in refining and distilling applications
Oil and Gas: chemical injection of biocide, corrosion / scale inhibitors, hydrogen sulfide (H2 S) scavengers to protect piping and other assets and maintaining production rates, transfer of steam condensate
Refinery / Downstream: chemical injection for separation and treatment of refined products, injection of paraffin inhibitor into fuel storage tanks
Water / Wastewater Treatment:
- Municipal (drinking) Water Treatment: disinfection, fluoridation, coagulation / flocculation, pH control, water conditioning before and / or after RO treatment in desalination plant
- Industrial Water Treatment: protection of installation such as boilers and hydraulic systems to prevent scale and corrosion

Model A5

For use in an open tank at atmospheric pressure.

Rotation speed: 10 to 500 rpm
Rated power: about 0.55 to 500 kW
Impeller diameter: 0.20 to 6 m
Impeller type: all kind
Construction material: all machinable metallic material
Pressure use: atmospheric pressure
Temperature up to 500°C (932°F)
Pressure with vaccum at 300 gauge bars
Viscosity up to 1000 Pas

Model B5

For use when a simple tightness is required to avoid contact between the product and the atmosphere (mixing under few mbars of pressure or vacuum or when the product is dangerous or must be kept under inert atmosphere)

Rated power: about 0.55 to 37 kW
Rotation speed: 500 to 10 rpm
Impeller diameter: 0.20 to 6m
Impeller type: all kind
Construction material: machinable metallic material
Pressure use: few mbar difference with the atmospheric

Model E5

For use in mixing at atmospheric pressure in open tanks

Rated power: about 0.75 to 250 kW
Rotation speed: 500 to 10 rpm
Impeller diameter: 0.50 to 6m
Impeller type: all kind
Construction material: all machinable metallic material
Pressure use: few mbar difference of the atmospheric pressure

Model F5

For use in all operations processed under pressure or vacuum, or mixing dangerous substances.

Rated power: about 0.75 to 250 kW
Rotation speed: 500 to 10 rpm
Impeller diameter: 0.25 to 6m
Impeller type: all kind
Construction material: all machinable metallic material
Pressure use: full vacuum to approx. 75 Bg (250 Bg with magnetic drive)

Compact Vertical Mixers
Helisem® Series

Compact. Powerful. Energy Efficient. Increase Process Efficiency with the HELISEM® Series The HELISEM® Range offers 5 distinct series – VDA, VRP, VRH, VRG, and FRH – each with a specific impeller, to support a wide range of open tank applications from 2.5 to 520,000 gallons (10 L to 1,970 m3) and viscosities up to 1,000 mPas (cP) at 1.3 specific gravity.

The VDA model is a motor driven mixer available with a variety of marine propellers and mounting options.

The VRP model is a gearmotor driven mixer using a pitch blade turbine (PBT). An ideal mixer for a wide range of applications, the VRP offers mixing during emptying, filling or with a variable speed drive.

The FRH model is a gearmotor driven mixer equipped with the HP2 propeller with 2 blades. This model was specifically designed for flocculation in water treatment. The HP2 impeller generates good flow with the least shear possible, making it ideal for flocculation. It can be suitable for other applications as well that require low to medium mixing levels.

The VRH model is a gearmotor driven mixer equipped with the HP1 propeller with 3 blades. This is a powerful mixer with an improved hydraulic efficiency to meet the demands of a wide range of applications.

The new VRG model is a gearmotor driven mixer equipped with the 10SG SABRE propeller with 3 blades. This new model is recommended for high flow rate, viscous products, and sensitive products due to the wide blade that gives a high flow and allows low rotation speed.

Powerful and compact, the HELISEM® Series provides energy efficiency in a lightweight mixer with uncompromising results.

Up to 70% energy savings
Easy to install and maintain, saving valuable manpower and resources
Solid shafts provide easier cleaning while reducing resistance and corrosion
FRH and VRH mixers can rotate during emptying, filling and can be equipped with a frequency inverter
Quick to ship

Because of it broad range, Helisem agitators are used in many industries including Chemical Industry. Mixing and storage of chemical products General Industry. Agitation of bitumen, painting, inks, additives, adhesives, textiles, lubricants Oil and gas. Additives injection Water treatment. Flocculation, neutralization, preparation and storage of reagents (lime milk, polymer, ferric chloride…) Pharmaceuticals. Additives injection, dilution and storage for numerous applications Food & Beverage. Additives injection, dilution and storage for numerous applications.

High-Volume, High Pressure Process Pump
Megaroyal® Series

Optimal leak-proof performance for high-volume chemical injection Designed for your most critical industrial processing needs, the Megaroyal process pump provides reliable, leak-proof performance with a modular design in a minimal footprint.

The Megaroyal process pump is ideal for high volume applications and can provide a flow rate of up to 12,680 gph or 211 gpm (48 m³/h or 800 L/min) with discharge pressures to 3,655 psi (252 bar) in a footprint that is up to 25% smaller when compared to similar competitive options.

You get the reliability you have come to expect with Milton Roy pumps, but we’ve added unique features that make it cost effective, easy to install and maintain, and powerful enough to meet all of your chemical dosing needs.

Megaroyal Model B Performance Data

Max Discharge Flow: 60m³/h (15,850 gph)
Maximum Discharge Pressure: 400 bar or 5,800 psi (PTFE Diaphragm)
Maximum Motor Power: 75kW
Temperature Range: -10°C to 150°C (14°F to 300°F)
Flow Adjustment: VFD + Variable Frequency Motor

Megaroyal pumps are ideal for heavy-duty industrial processes:

Oil and Gas. Injection of chemicals for treating of oil, gas and water to prevent hydrate formation, reduce corrosion and scales and many more. Because of its reliable technology, Megaroyal pumps can also be used to inject chemical in remote and unmanned production sites or pipelines.

Chemical and Petrochemical Processing. Metering of chemicals in refinery processes such as separation/distillation, transformation/conversion and finishing/refining of products.

It can also be used in industries such as power generation, pharmaceuticals, food and beverage and many more.

Metering Pumps
MILROYAL® Series

Modular design for high-pressure applications Customized performance when it matters most The MILROYAL® series metering pumps are the most reliable, industrial-duty metering pumps for critical processes in industries such as oil and gas, chemical and petrochemical processing, Drag Reducer Agent (DRA), and industrial water treatment.

Configuration flexibility. The pump’s three frame sizes cover a full range of capacities and pressures and it has the capability to be multiplexed with up to 16 pumps driven by one motor.

Leak-proof performance. A selection of diaphragms including metallic, high-performance, and critical service diaphragms can provide leak-proof performance at pressures up to 20,000 psi (1380 bar)

Accurate flow control. Capacity adjustable by manual control, electronic actuator, pneumatic actuator, or variable speed allows flexible control of chemical delivery.

Oil & Gas. Milroyal pumps are ideal for high-pressure offshore applications. They consistently inject methanol, corrosion inhibitors, oxygen binders, and other corrosive substances in the harshest conditions in the most remote locations.

Drag Reducer Agents (DRA). With decades of experience and a field proven design, Milton Roy’s DRA pumps provide precise injection at strategic points along a pipeline network to reduce turbulence and optimize flow efficiency.

Chemical and Petrochemical Processing. The harsh, toxic chemicals required for chemical processes require metering pumps that ensure accuracy in delivery of these critical and difficult fluids. Milroyal pumps’ modularity allows a selection of liquid ends and configurations to ensure you get the right pump for chemicals being handled.

Industrial Water Treatment. Industrial process water must be treated efficiently and cost-effectively in compliance with quality standards. The reliability of Milroyal pumps deliver accurate chemical delivery and provide long-term cost benefits.

Accurate Metering Pump
CENTRAC™ Series

Better accuracy and greater responsiveness CENTRAC metering pumps are engineered to operate with the highest level of performance and accuracy.

CENTRAC pumps combine a unique constant stroke length drive mechanism and electronic variable speed drive technology. The unique drive system provides a steady state accuracy of +/- 0.5% over the entire turndown range. This is twice the accuracy of the standard +/- 1% of most metering pumps. Greater accuracy means better control of the treatment process and more efficient chemical usage.

In addition, these pumps offer a 100:1 turndown ratio. The advanced design enables the pumps to respond instantly to changes in dosage rate, making it the ideal metering pump for a wide range of flow rates in water and wastewater treatment applications.

Benefits:

Simple but robust design for reliability
All moving parts are submerged in oil
Instant response to dosage changes
Precise feedback signal
Efficient drive sizing
Mates with advanced HPD liquid end for maximum performance
Economical duplex configuration availability
Compact design with a higher capacity in a small footprint
Low maintenance

Water and wastewater treatment. CENTRAC pumps are ideal for water treatment applications because of their proven accuracy, responsive design, and capability to dose a variety of chemicals over a wide range of flow rates. These reliable, low maintenance metering pumps provide efficient dosing and reduce chemical costs.

Low-Pressure Metering Pump
MACROY® Series

Simple. Rugged. Smart. Efficient design for low-pressure, high-output water treatment applications now NSF/ANSI 61 and 372 certified.

All models are not available in all locations. Check with your local representative for details.

The G series metering pump, also known as the MACROY® pump, is now NSF/ANSI 61 and 372 certified for municipal compliance and safety assurance. Capable of handling pressures up to 175 psi (12 bar) and flow rates up to 310 gph (1181 l/h) it is an ideal pump for water treatment applications. Combining heavy-duty industrial drive technology with state-of-the art design and manufacturing processes, this mechanically-actuated diaphragm pump eliminates flow restrictions, reduces the possibility of hydraulic oil contamination of process liquid, and ensures smooth output.

Simplicity of design. The pump has few moving parts and is compact and lightweight.

Greater flexibility. G series pumps feature a variable eccentric drive with stroke adjustment. It is available in three frame sizes and can accommodate a wide selection of liquid ends.

Rugged performance. Corrosion-resistant plastic or aluminum housing is designed to withstand tough environments while its high-efficiency motors minimize heat buildup.

Long-term cost benefits. This reliable pumps requires minimal maintenance, reducing overall pump lifecycle costs.

Now NSF / ANSI 61 and 372 certified for municipal compliance and safety assurance

Performance by the numbers:

Pressures up to 175 psi (12 bar)
High flow rates up to 310 gph (1181 l/h.)
Steady-state accuracy – ± 1% of full capacity over the standard 10:1 turndown ratio
Now NSF / ANSI 61 and 372 certified for municipal compliance and safety assurance

Ideal for lower pressure processes Now with NSF/ANSI 61 and 372 certification for municipal compliance and safety assurance. The G-Series or MACROY® metering pumps are perfect for chemical dosing in water and waste treatment facilities, industrial process, agriculture, and many more applications. These pumps reliably inject chemicals such as ferric chloride, aluminum sulfate, polymers, alkalis, sodium hydroxide, acids, anti-scaling and anti-foaming agents and many more for coagulation/flocculation, slurry treatment, pH control and adjustment, and desalination.

Intelligent Metering Pumps
PROTEUS® Series

New Communications Model Offers Tighter Process Control and Enhanced Plant Automation

Each PROTEUS model features a backlit color display with convenient navigation in five languages: English, French, Spanish, Portuguese, and Chinese.

The New PROTEUS™ Communications Model adds support for Modbus RTU and Profibus (Process Field Bus) DP protocols to facilitate high speed, 2-way communications. This allows plant operators to link devices from different vendors to a central SCADA (Supervisory Control And Data Acquisition) system for control, monitoring, and troubleshooting activities.

PROTEUS™ metering pumps are mechanically actuated diaphragm pumps driven by advanced variable speed technology to address specific requirements of chemical addition in water treatment. All three configurations of PROTEUS pumps – Manual, Enhanced, and Communications – also address the process control requirements of a wide range of applications including water and wastewater treatment, agricultural, chemical, oil & gas; power generation, pulp & paper, and textile industries.

Whatever your application, the PROTEUS™ series is ready to outperform and outsmart your most demanding application.

A mechanically-actuated diaphragm pump driven by advanced variable speed technology to provide the most accurate and reliable performance in the industry
- Expanded capacity to 53 GPH (201 LPH) to meet a wider range of specifications in the same footprint.
- Refreshed user interface making programming inputs and out puts easier than ever.
- Remote connectivity enables control and feedback in real time.
- Universal power supply provides maximum flexibility (100-240V, 50/60 Hz) to power your pump.
- Multilanguage navigation (English, French, Spanish, Portuguese and Chinese) offers convenient operation in the field.
- Innovative drive system creates superior +/- 1% steady state accuracy over 1000:1 turndown ratio for greater flexibility in handling difficult chemicals.
- Optional liquid-end materials (polypropylene, PVDF, and 316L Stainless Steel) to maximize the life of the pump in challenging environments.
- Mechanically actuated diaphragms provide easy maintenance with years of field experience.
- Rugged construction with NEMA 4X/IP 65 housing and protective cover protect in the harshest environments.
- Modbus RTU and Profibus DP enabled for 2-way communication

A comprehensive product offering

Increased capacity to 53 GPH (201 LPH) to meet a wider range of specifications in the same footprint.
Refreshed user interface making programming inputs and outputs easier than ever.
Advanced 2-way communications via Profibus DP or Modbus RTU protocols
Innovative drive system achieves +/-1% accuracy and 1000:1 turn-down.

Agricultural
Chemical
General Industry
Oil & Gas
Power Generation
Pulp & paper
Textiles
Water Treatment
Wastewater Treatment
Other (Contact your local representative)

High-Pressure Metering Pump
Primeroyal X (PX) Series

The PRIMEROYAL® metering pumps are versatile, reliable pumps that consistently and accurately inject chemicals. The pumps’ field-proven design enables precise control of the pump delivery rate with a +/-1% steady state accuracy, over a range from 10 to 100% of the nominal flow rate. They feature a compact, variable eccentric drive that changes the stroke length by repositioning the center of the shaft in the eccentric.

Model PR provides accurate dosing of a broad spectrum of fluids used in many industrial processes due to its modular design which offers several types of liquid ends, capacity control options and other configuration options enabling it to meet the specific requirements of your process application.

Compliant with API 675 standards
Adaptability and accuracy: capacity adjustable while running or stopped (stroke micrometric adjustment, 10 turns only from 0 to 100%, graduation scale in %)
Space constraints: available in vertical or horizontal motor configurations
Suitable for the majority of fluids in all industrial processes: many stroke speeds for accurate dosing
Modular design to precisely fit your needs: multiple options for liquid ends, check valves, connection types, and control
Multiplexing capability: providing cost savings in the power consumption and asset footprint while reducing pulsation and required NPSH and, giving the capability to inject several different products or meet a specific flow rate
Long life: ensured by using high quality materials engineered to a robust and proven construction, oil bath lubrication for reliability during continuous operation
Safety: diaphragm liquid ends guaranteed leak-proof with service life in excess of 20,000 hours
Operations even in the most extreme conditions: specific configurations to operate in saline/offshore conditions, desert, or low temperature environment
Global design: can comply with the main worldwide certifications and systems: ATEX, NACE, SASO, Customs Union, etc.
Over-pressure protection: integrated safety valve to protect the pump on diaphragm liquid ends
Maintenance easy and fast: the patented Mechanically Actuated Refill System (MARS) on PTFE diaphragm liquid ends avoids the need to delicately adjust the refill valve

Packed plunger, PTFE or metallic diaphragm liquid ends available
- Liquid end body in 316L S.S. or 17.4 PH. Other materials such as Alloy 20, Hastelloy®, super Duplex available upon request
- Diaphragms in PTFE or 301 stainless steel; plunger in ceramic (Al203) or chromium oxide coated
- 6 stroke speeds/gear ratios available with 50 Hzmotor: 48, 73, 93, 117, 146 and 175 spm. 5 stroke speeds/gear ratios with 60 Hz-motor: 58, 88, 112, 140 and 175 spm
- Manual, electrical or pneumatic stroke length adjustment
- Fixed stroke version. A variable speed motor can allow to instantly vary the flow rate
- IEC or NEMA mounting, motor for frequency variation
- Electric equipment for non-hazardous or hazardous area, large variety of protections and insulations
- Conforms to ATEX CE EX II 2G/D c T4/T3 with ATEX motors
- Optimum protection for critical processes or pumped fluids: double or triple diaphragm, diaphragm failure detection, temperature probes
- Special valves for any type of fluid (including concentrated sulphuric acid and slurries)
- Remote head, cooling/heating jacket to operate into processes requiring low/extreme fluid temperatures
- Full set of connections: screwed or flanged connectors(ANSI, DIN or ISO)
- Wide range of accessories available to complete your dosing installation

Refinery/Petrochemi cal/Chemical: pumping of hydrocarbons/LP steam condensate, transfer of ammonia water in fertilizer plant, manufacturing of DME (dimethyl ether) from methanol
- General industry: high pressure cleaning of mechanical parts for industry
- Oil & Gas: Chemical Injection
  - Flow assurance on onshore and offshore sites: hydrate prevention by injection of thermodynamic inhibitors (methanol, MEG and glycol), prevention and removal of scale/asphaltene deposits, microbial pollution control by biocide injection, injection of corrosion inhibitors
  - Gas dehydration by MEG, TEG, DEG injection
  - Water treatment: closed drain pump for hydrocarbon condensate transfer

Process-Critical Metering Pump
Primeroyal Flat Twin (PX FT) Series

Engineered for process-critical applications, the PRIMEROYAL® Flat Twin (PX FT) metering pump is Milton Roy’s most powerful pump explicitly designed for high performance industries and applications. The modular design is smaller and lighter than comparable Primeroyal models while maintaining a respectable performance with flows reaching up to 32,295 l/h (8,351 gph) and pressures up to 1,029 bar (15,000 psi).

Utmost performances: High flow rates (up to 32,295 L/h - 8,531 GPH) and High discharge pressure (up to 1,029 bar / 15,000 psi)
Compliant with API675 standards
Adaptability and accuracy: capacity adjustable while running or stopped (stroke micrometric adjustment, from 0 to 100%)
Space constraints: Available in vertical or horizontal motor configurations
Suitable for the majority of fluids and a large number of industrial processes: several stroke speeds for accurate dosing
Modular design to precisely fit your needs: three designs of liquid ends, specific check valves, adaptable connection types, rupture detection systems…
Multiplexing capability: to reduce pulsations, meet a specific flow rate by reducing the number of parts, the power consumption and the footprint or to inject several products
Long life: ensured by a robust and proven construction, oil bath lubrication to ensure reliability during continuous operation, using the best material
Safety: double diaphragm liquid ends guaranteed leak-proof with service life in excess of 20,000 hours
Operations even in the most extreme conditions: specific configurations to operate in saline/offshore conditions, desert, low temperature environment
Global design: can comply with the main worldwide certifications and systems: ATEX, NACE, PED, SASO, Customs Union, etc.
Over-pressure protection: integrated safety valve to protect the pump on diaphragm liquid ends

Technical Features:

Packed plunger, PTFE or metallic diaphragm liquid ends available
Liquid end body in 316L S.S., 17-4 PH Other materials like Alloy 20, Hastelloy, super Duplex available upon request
Steady-state accuracy – ± 1% of full capacity over the standard 10:1 turndown ratio
Diaphragms in PTFE or SS 301 stainless steel; plunger in ceramic Maximum allowable suction pressure performances (up to 407 bar / 5908 psi)
5 stroke speeds/gear ratios available with 50 Hz motor: 73,93,117,146 and 175 spm. 4 stroke speeds/gear ratios available with 60 Hz motor: 88,112,140 and 175 spm.
Manual or electrical stroke length adjustment
IEC or NEMA mounting, motor for frequency variation
Electric equipment for non-hazardous or hazardous area,large variety of protections and insulations
Conforms to ATEX II 2 G Ex h IIC T3 Gb X with Atex motor
Optimum protection for critical processes or pumped fluids: double diaphragm, diaphragm failure detection, temperature probes and cooling system.
Special check valves for any type of fluid (including concentrated sulfuric acid and slurries)
Remote head, Cooling/heating jacket for handle processing requiring low/extreme fluid temperatures
Full set of connections: screwed or flanged connectors (ANSI, DIN or ISO)
Wide range of accessories available to complete your dosing installation

Oil and Gas Chemical Injection:
- Upstream: injection of methanol, CO2, monoethylene glycol, corrosion inhibitors and many more to prevent hydrate formation, wax and scale deposits and corrosion in deep-water wells
- Midstream: Injection of corrosion inhibitors for produced oil and gas integrity during transportation
- Downstream: Injection of chemicals for separation and treatment of refined products
Chemical and Petrochemical Processing: Dosing catalysts for polymerization of polyethylene
Power Generation: High-pressure boiler feed water treatment
Refinery: Pumping of hydrocarbons/condensate
Water treatment in Oil & Gas: Deep water disposal, hydrocarbon condensate transfer

Variable Excentric Drive Metering Pump
Primeroyal PR Model

Compliant with API 675 standards
Adaptability and accuracy: capacity adjustable while running or stopped (stroke micrometric adjustment, 10 turns only from 0 to 100%, graduation scale in %)
Space constraints: available in vertical or horizontal motor configurations
Suitable for the majority of fluids in all industrial processes: many stroke speeds for accurate dosing
Modular design to precisely fit your needs: multiple options for liquid ends, check valves, connection types, and control
Multiplexing capability: providing cost savings in the power consumption and asset footprint while reducing pulsation and required NPSH and, giving the capability to inject several different products or meet a specific flow rate
Long life: ensured by using high quality materials engineered to a robust and proven construction, oil bath lubrication for reliability during continuous operation
Safety: diaphragm liquid ends guaranteed leak-proof with service life in excess of 20,000 hours
Operations even in the most extreme conditions: specific configurations to operate in saline/offshore conditions, desert, or low temperature environment
Global design: can comply with the main worldwide certifications and systems: ATEX, NACE, SASO, Customs Union, etc.
Over-pressure protection: integrated safety valve to protect the pump on diaphragm liquid ends
Maintenance easy and fast: the patented Mechanically Actuated Refill System (MARS) on PTFE diaphragm liquid ends avoids the need to delicately adjust the refill valve

Packed plunger, PTFE or metallic diaphragm liquid ends available
- Liquid end body in 316L S.S. or 17.4 PH. Other materials such as Alloy 20, Hastelloy®, super Duplex available upon request
- Diaphragms in PTFE or 301 stainless steel; plunger in ceramic (Al203) or chromium oxide coated
- 6 stroke speeds/gear ratios available with 50 Hzmotor: 48, 73, 93, 117, 146 and 175 spm. 5 stroke speeds/gear ratios with 60 Hz-motor: 58, 88, 112, 140 and 175 spm
- Manual, electrical or pneumatic stroke length adjustment
- Fixed stroke version. A variable speed motor can allow to instantly vary the flow rate
- IEC or NEMA mounting, motor for frequency variation
- Electric equipment for non-hazardous or hazardous area, large variety of protections and insulations
- Conforms to ATEX CE EX II 2G/D c T4/T3 with ATEX motors
- Optimum protection for critical processes or pumped fluids: double or triple diaphragm, diaphragm failure detection, temperature probes
- Special valves for any type of fluid (including concentrated sulphuric acid and slurries)
- Remote head, cooling/heating jacket to operate into processes requiring low/extreme fluid temperatures
- Full set of connections: screwed or flanged connectors(ANSI, DIN or ISO)
- Wide range of accessories available to complete your dosing installation

Refinery/Petrochemi cal/Chemical: pumping of hydrocarbons/LP steam condensate, transfer of ammonia water in fertilizer plant, manufacturing of DME (dimethyl ether) from methanol
- General industry: high pressure cleaning of mechanical parts for industry
- Oil & Gas: Chemical Injection
  - Flow assurance on onshore and offshore sites: hydrate prevention by injection of thermodynamic inhibitors (methanol, MEG and glycol), prevention and removal of scale/asphaltene deposits, microbial pollution control by biocide injection, injection of corrosion inhibitors
  - Gas dehydration by MEG, TEG, DEG injection
  - Water treatment: closed drain pump for hydrocarbon condensate transfer

Modular Designed Metering Pumps
Primeroyal PP Model

The PRIMEROYAL® PP metering pumps are versatile, reliable pumps that consistently and accurately inject chemicals. The pumps’ fieldproven design enables precise control of the pump delivery rate while meeting or exceeding industry standards for steady state accuracy and repeatability. They feature a compact, variable eccentric drive that changes the stroke length by changing the position of the center of the shaft in the eccentric. Model PP provides accurate dosing of a broad spectrum of fluids at flow rates that can reach more than 15,665 l/h (4,138 gph). The pump has a modular design that accepts three types of liquid ends and offers capacity control options so it can meet the specific requirements of a large number of demanding industrial processes.

Available in vertical or horizontal motor configurations
Manual or electrical stroke length adjustment
Capacity adjustable while running or stopped
Minimized footprint
Packed plunger, Teflon® PTFE or metallic double diaphragm liquid ends available
Compliant with API675 standards
Compliant with API674 standards in fixed stroke configuration
Conforms to ATEX CE EX II 2G/D c T3 with ATEX motors
Multiplexable

Oil and Gas chemical injection
- Upstream – Injection of methanol at pressures of 1,034 bar (15,000 psi) and more at the wellhead for onshore and offshore wells
- Midstream – Injection of corrosion inhibitors for produced oil and gas integrity during transportation
- Downstream – Injection of chemicals for separation and treatment of refined products
- Produced water treatment – Injection of sodium hypochlorite, biocides, scale inhibitors, oxygen reducing agent, etc.
Chemical and Petrochemical Processing
- Dosing catalysts for polymerization of polyethylene
Power Generation
- High-pressure boiler feed water treatment

Accuracy: ± 1% over a range of 10 to 100% nominal flowrate
Flow rate adjustment:
- Micrometer adjustment of stroke while running or stopped
- Fixed stroke version available as an option
Maximum stroke: 75 mm (2.95 in)
Frequencies at 50 Hz 1,440 rpm: 48, 73, 93, 117, 146, and 175 spm
Frequencies at 60 Hz 1,725 rpm: 58, 88, 112, 140, and 175 spm
Thrust 2,500 daN (5,620 lbf)
Ambient operating temperature:
- Standard: -10°C to 50°C (14°F to 122°F)
- Low temperature option: -40°C to 50°C (-40°F to 122°F)
API675: Conforms (exemptions available on request)
ATEX: Conforms to ATEX CE EX II 2G/D c T3 with ATEX motor For packed plunger liquid ends, in area 1 consult us
Suction:
- UT liquid ends: 2 m (6.57 ft) water
- N and NX liquid ends: 6 m (19.7 ft) water
- H and HX liquid ends: 4 m (13 ft) water
- MX liquid ends: 2 m (6.57 ft) water mini pump flooded

Field-Proven Metering Pumps
Primeroyal PN Model

Model PN provides accurate dosing of a broad spectrum of fluids used in many industrial processes due to its modular design which offers several types of liquid ends, capacity control, and other configuration options to meet the specific requirements of your process application.

Compliant with API 675 standards
Adaptability and accuracy: capacity adjustable while running or stopped (stroke micrometric adjustment, 10 turns only from 0 to 100%, graduation scale in %)
Space constraints: available in vertical or horizontal motor configurations
Suitable for the majority of fluids in all industrial processes: many stroke speeds for accurate dosing
Modular design to precisely fit your needs: multiple options for liquid ends, check valves, connection types, and control
Multiplexing capability: providing cost savings in the power consumption and asset footprint while reducing pulsation and required NPSH and, giving the capability to inject several different products or meet a specific flow rate
Long life: ensured by using high quality materials engineered to a robust and proven construction, oil bath lubrication to ensure reliability during continuous operation
Safety: diaphragm liquid ends guaranteed leak-proof with service life in excess of 20,000 hours
Operations even in the most extreme conditions: specific configurations to operate in saline/offshore conditions, desert, or low temperature environment
Global design: can comply with the main worldwide certifications and systems: ATEX, NACE, SASO, Customs Union, etc.
Overpressure protection: integrated safety valve to protect the pump on diaphragm liquid ends
Maintenance easy and fast: the patented Mechanically Actuated Refill System (MARS) on PTFE diaphragm liquid ends avoids the need to delicately adjust the refill valve

Packed plunger, PTFE or metallic diaphragm liquid ends available

Liquid end body in 316L S.S., 17.4 PH, PVC or PVDF. Other materials such as Alloy 20, Hastelloy®, super duplex available upon request
Diaphragms in PTFE, 316L or 301 stainless steel; plunger in ceramic (Al203) or chromium oxide coated
6 stroke speeds/gear ratios available with 50 Hzmotor: 64, 78, 96, 117, 149 and 180 spm. 5 stroke speeds/gear ratios with 60 Hz-motor: 77, 94, 115, 140 and 179 spm
Manual, electrical or pneumatic stroke length adjustment
Fixed stroke version. A variable speed motor can allow to instantly vary the flow rate
IEC or NEMA mounting, motor for frequency variation
Electric equipment for non-hazardous or hazardous area, large variety of protections and insulations
Conforms to ATEX CE EX II 2G/D c T4/T3 with ATEX motors
Optimum protection for critical processes or pumped fluids: double or triple diaphragm, diaphragm failure detection, temperature probes
Special valves for any type of fluid (including concentrated sulphuric acid and slurries)
Remote head, cooling/heating jacket to operate into processes requiring low/extreme fluid temperatures
Full set of connections: screwed or flanged connectors(ANSI, DIN or ISO)
Wide range of accessories available to complete your dosing installation

Chemical/Petrochemical: chemical injection of additives, transfer of ammonia water in fertilizer plant
Oil and Gas: chemical injection of methanol, MEG and glycol to protect pipes and avoid any stops of production due to hydrates; injection of wax inhibitors, demulsifiers, pour point depressants to control the oil viscosity; treatment of produced water (transfer, injection of coagulants)
Power Generation: metering of biocide, hyprochlorite to prevent fouling of the mechanical equipment of the mechanical equipment and pipework
Refinery/Downstream: chemical injection of dimethyl disulfide (DMD) to activate hydrocraking/hydrodesuphuring catalysts, boiler feed water pump, metering of additives
Water/Wastewater Treatment:
- Municipal (drinking) Water Treatment: disinfection, fluoridation, coagulation/flocculation, pH control, water conditioning before and/or after RO treatment in desalination, and more
- Industrial Water Treatment: protection of installed equipment such as boilers and hydraulic systems to prevent scale and corrosion

Consistently Accurate Metering Pump
Primeroyal PK and PKG Models

Models PL and PLG provide accurate dosing of a broad spectrum of fluids used in many industrial processes due to their modular design which offers several types of liquid ends, capacity control, and other configuration options meet the specific requirements of your process application.

Compliant with API 675 standards
Adaptability and accuracy: capacity adjustable while running or stopped (stroke micrometric adjustment, 10 turns only from 0 to 100%, graduation scale in %)
Space constraints: Minimized footprint and weight, available in vertical or horizontal motor configurations, GSD design for tiny spaces
Suitable for the majority of fluids in all industrial processes: many stroke speeds for accurate dosing
Modular design to precisely fit your needs: multiple options for liquid ends, check valves, connection types, control, and more
Multiplexing capability: providing cost savings in the power consumption and asset footprint while reducing pulsation and required NPSH and, giving the capability to inject several different products or meet a specific flow rate
Long life: ensured by using high quality materials engineered to a robust and proven construction, oil bath lubrication to ensure reliability during continuous operation
Safety: diaphragm liquid ends guaranteed leak-proof with service life in excess of 20,000 hours
Operations even in the most extreme conditions: specific configurations to operate in saline/offshore conditions, desert, or low temperature environment
Global design: can comply with the main worldwide certifications and systems: ATEX, NACE, SASO, Customs Union, etc.
Overpressure protection: integrated safety valve to protect the pump on diaphragm liquid ends
Additional benefits with PTFE diaphragm liquid ends:
- Maintenance easy and fast: the patented Mechanically Actuated Refill System (MARS) avoids the need to delicately adjust the refill valve
- Triple hydraulic security with the GSD design: in addition to the internal pressure safety valve, the diaphragm controls the hydraulic refill and the diaphragm itself is protected by a valve blocking the overrunning and the extrusion
- Installation Monitoring Indicator (IMI) system with the GSD design: visual indication of over-pressure, cavitation and lack of pulsation dampening that can cause disturbance and inaccuracy in the dosing process

Packed plunger, PTFE or metallic diaphragm liquid ends available
Liquid end body in 316L S.S., 17-4P-H, PVC or PVDF. Other materials such as Alloy 20, Hastelloy®, super Duplex available upon request
Diaphragms in PTFE or 316L stainless steel; plunger in Z55CDV17 steel or chromium oxide coated
6 stroke speeds/gear ratios available with 50 Hzmotor: 39, 59, 100, 120, 144 and 180 spm. 5 stroke speeds/gear ratios with 60 Hz-motor: 47, 71, 120, 144 and 173 spm
Manual, electrical or pneumatic stroke length adjustment
IEC or NEMA mounting, motor for frequency variation
Electric equipment for non-hazardous or hazardous area, large variety of protections and insulations
Conforms to ATEX CE EX II 2G/D c T4/T3 with ATEX motors
Optimum protection for critical processes or pumped fluids: double or triple diaphragm, diaphragm failure detection, temperature probes
Food grade design (in accordance with CE 1935-2004)
Special valves for any type of fluid (including concentrated sulphuric acid and slurries)
Remote head, cooling/heating jacket to operate in processes requiring low/extreme fluid temperatures
Full set of connections: screwed or flanged connectors(ANSI, DIN or ISO)
Wide range of accessories available to complete your dosing installation

Chemical/Petrochemical: injection of additives, transfer of ammonia water in fertilizer plant
Food and Beverage: injection of enzymes in starch production , injection of caustic soda for process water neutralization in refining and distilling application
Mining: injection of reactives to wash extracting ores such as platinum and gold
Oil and Gas: chemical injection of biocide, scale inhibitors to protect the pipes, injection of demulsifier to improve oil quality, injection of reverse emulsion breakers to meet water/water stream quality
Refinery/Downstream: chemical injection of boiler feedwater, injection of anti-fouling into the debutanizer, transfer of sour water before treatment, injection of catalyst during biodiesel
Utilities: conditioning of make-up water, protection of boilers, cooling systems and hydraulic systems (biocides, antifoam, oxygen scavengers, scale inhibitors)
Water/Wastewater Treatment:
- Municipal (drinking) Water Treatment: disinfection, fluoridation, coagulation/flocculation, pH control, water conditioning before and/or after RO treatment in desalination, and more
- Industrial Water Treatment: protection of installed equipment such as boilers and hydraulic systems to prevent scale and corrosion

Low Flow and High Pressure
Primeroyal PK and PKG Models

Models PK and PKG provide accurate dosing of a broad spectrum of fluids used in many industrial processes due to their modular design which offers several types of liquid ends, capacity control and other configuration options to meet the specific requirements of your process application.

Compliant with API675 standards
Adaptability and accuracy: capacity adjustable while running or stopped (stroke micrometric adjustment, 10 turns only from 0 to 100%, graduation scale in %)
Space constraints: Minimized footprint and weight, available in vertical or horizontal motor configurations, GSD design for tiny spaces
Suitable for the majority of fluids in all industrial processes: many stroke speeds for accurate dosing
Modular design to precisely fit your needs: multiple options for liquid ends, check valves, connection types, and control…
Multiplexing capability: providing cost savings in the power consumption and asset footprint while reducing pulsation and required NPSH and, giving the capability to inject several different products or meet a specific flow rate
Long life: ensured by using high quality materials engineered to a robust and proven construction, oil bath lubrication to ensure reliability during continuous operation
Safety: diaphragm liquid ends guaranteed leak-proof with service life in excess of 20,000 hours
Operations even in the most extreme conditions: specific configurations to operate in saline/ offshore conditions, desert, or low temperature environment
Global design: can comply with the main worldwide certifications and systems: ATEX, NACE, SASO, Customs Union, etc.
Overpressure protection: integrated safety valve to protect the pump on diaphragm liquid ends
Additional benefits with PTFE diaphragm liquid ends:
- Maintenance easy and fast: the patented Mechanically Actuated Refill System (MARS) avoids the need to delicately adjust the refill valve
- Triple hydraulic security with the GSD design: in addition to the internal pressure safety valve, the diaphragm controls the hydraulic refill and the diaphragm itself is protected by a valve blocking the overrunning and the extrusion
- Installation Monitoring Indicator (IMI) system with the GSD design: visual indication of overpressure, cavitation and lack of pulsation dampening that can cause disturbance and inaccuracy in the dosing process

Packed plunger, PTFE or metallic diaphragm liquid ends available
Liquid end body in 316L S.S., 17-4P-H, PVC or PVDF. Other materials such as Alloy 20, Hastelloy®, super Duplex available upon request
Diaphragms in PTFE or 316L stainless steel; plunger in Z55CDV17 steel or chromium oxide coated
6 stroke speeds/gear ratios available with 50 Hzmotor: 39, 59, 100, 120, 144 and 180 spm. 5 stroke speeds/ gear ratios with 60 Hz-motor: 47, 71, 120, 144 and 173 spm
Manual, electrical or pneumatic stroke length adjustment
IEC or NEMA mounting, motor for frequency variation
Electric equipment for non-hazardous or hazardous area, large variety of protections and insulations
Conforms to ATEX CE EX II 2G/D c T4/T3 with ATEX motors
Optimum protection for critical processes or pumped fluids: double or triple diaphragm, diaphragm failure detection, temperature probes
Food grade design (in accordance with CE 1935-2004)
Special valves for any type of fluid (including concentrated sulphuric acid and slurries)
Remote head, cooling/heating jacket to operate in processes requiring low/extreme fluid temperatures
Full set of connections: screwed or flanged connectors (ANSI, DIN or ISO)
Wide range of accessories available to complete your dosing installation

Chemical / Petrochemical: chemical injection of additives, injection of co-catalyst such as TEAL for polyethylene and polypropylene, injection of sulphuric acid into water to produce diluted sulphuric acid
Food and Beverage: injection of enzymes in starch production, injection of caustic soda for process water neutralization in refining and distilling applications
Oil and Gas: chemical injection of biocide, corrosion / scale inhibitors, hydrogen sulfide (H2 S) scavengers to protect piping and other assets and maintaining production rates, transfer of steam condensate
Refinery / Downstream: chemical injection for separation and treatment of refined products, injection of paraffin inhibitor into fuel storage tanks
Water / Wastewater Treatment:
- Municipal (drinking) Water Treatment: disinfection, fluoridation, coagulation / flocculation, pH control, water conditioning before and / or after RO treatment in desalination plant
- Industrial Water Treatment: protection of installation such as boilers and hydraulic systems to prevent scale and corrosion

Critical-Process Applications Reach Higher Pressures
Primeroyal H Series

PRIMEROYAL® metering pumps are versatile, reliable pumps that consistently and accurately inject chemicals. The pumps’ field-proven design enables precise control of the pump delivery rate with a +/-1% steady state accuracy ranging from 10 to 100% of the nominal flow rate. They feature a compact, variable eccentric drive that changes the stroke length by repositioning the center of the shaft in the eccentric. Model PH provides accurate dosing of a broad spectrum of fluids used in many industrial processes due to their modular design, which offers several types of liquid ends, capacity control, and other configuration options to meet the specific requirements of your process application.

Compliant with API 675 standards
Adaptability and accuracy: capacity adjustable while running and stopped (stroke micrometric adjustment, ten (10) turns only from 0 to 100%, graduation scale in %)
Space constraints: minimized footprint and weight, available in vertical or horizontal motor configurations
Suitable for most fluids used in industrial processes: many stroke speeds for accurate dosing
Modular design to precisely fit your needs: multiple options for liquid ends, check valves, connection types, and control
Multiplexing capability: provides cost savings in power consumption and asset footprint while reducing pulsation and required NPSH, capable of injection several different products at multiple specific flow rates
Long life: high-quality materials engineered to a robust and proven construction, oil bath lubrication to ensure reliability during continuous operation
Safety: leak-resistant diaphragm liquid ends with service life over 20,000 hours. Operates in the most extreme conditions: specific
Operates in the most extreme conditions: specific configurations to operate in saline/offshore conditions, desert, or low temperature environment
Global design: complies with major global certifications and systems: ATEX, NACE, SASO, Customs Union, etc.
Overpressure protection: integrated safety valve to protect the pump on diaphragm liquid ends
Efficient maintenance: the patented Mechanically Actuated Refill System (MARS) eliminates the need for adjustments the refill valve

Packed plunger, PTFE or metallic diaphragm liquid ends available
Liquid end body in 316L SS, 17-4P-H, PVC or PVDF. Other materials such as Alloy 20, Hastelloy®, super Duplex available upon request
Diaphragms in PTFE or 316L stainless steel; plunger in ceramic
Six (6) stroke speeds/gear ratios available with 50 Hz motor: 38, 57, 99, 115, 144 and 180 spm. Five (5) stroke speeds / gear ratios with 60 Hz motor: 48, 69, 119, 138 and 173 spm
Manual or electrical stroke length adjustment
IEC or NEMA mounting, motor for frequency variation
Electric equipment for non-hazardous or hazardous area, large variety of protections and insulations
Conforms to ATEX CE EX II 2G/D c T4/T3 with ATEX motors
Optimum protection for critical processes or pumped fluids: double or triple diaphragm, diaphragm failure detection, temperature probes
Special valves for any type of fluid (including concentrated sulphuric acid and slurries)
Remote head, cooling/heating jacket to operate in processes requiring low/extreme fluid temperatures
Full set of connections: screwed or flanged connectors(ANSI, DIN or ISO)
Wide range of accessories available to complete your dosing installation

Chemical / Petrochemical: chemical injection of additives, injection of co-catalyst such as TEAL for polyethylene and polypropylene, injection of sulphuric acid into water to produce diluted sulphuric acid
Food and Beverage: injection of enzymes in starch production, injection of caustic soda for process water neutralization in refining and distilling applications
Oil and Gas: chemical injection of biocide, corrosion / scale inhibitors, hydrogen sulfide (H2 S) scavengers to protect piping and other assets and maintaining production rates, transfer of steam condensate
Refinery / Downstream: chemical injection for separation and treatment of refined products, injection of paraffin inhibitor into fuel storage tanks
Water / Wastewater Treatment:
- Municipal (drinking) Water Treatment: disinfection, fluoridation, coagulation / flocculation, pH control, water conditioning before and / or after RO treatment in desalination plant
- Industrial Water Treatment: protection of installation such as boilers and hydraulic systems to prevent scale and corrosion

Critical Process Control
mRoy XA and XB Series

Maximize uptime with unrivaled accuracy and reliability Setting the worldwide industry standard for critical process control

mROY series metering pumps control chemical dosing with unmatched accuracy and reliability. This dosing pump is durable, compact in design and enables metering of some of the harshest chemicals with repetitive steady-state accuracy at a ±1% range.

It’s not unusual to find mROY® metering pumps still operating at design performance after 20 or more years of service. That’s because mROY® maximum uptime pumps are comprised of a unique set of technical features that deliver consistent chemical injection performance with minimal maintenance requirements.

With flow rates from 0.25 l/h to 310 l/h, it has the capability to dose a broad spectrum of chemicals in numerous process-critical environments such as chemical processing plants, municipal water treatment facilities, and remote oil production locations.

The enhanced mROY® metering pump features improved component durability, it is easier to prime, it performs more efficiently and it is safer and simpler to maintain

Accurate, repeatable flow control. The liquid end has been specifically designed for optimal chemical delivery. Available in metallic or non-metallic materials, the liquid end features a high-quality double ball check valve for repeatability and accuracy, micrometer capacity control for precise dosage adjustment, and a bleed system for safer maintenance and easier commissioning.

Rugged enclosure. Dust-tight, cast-iron drive housing with a high-quality chemical resistant coating provides a rugged enclosure for operation in any plant and field environment.

Application flexibility. Available in simplex and duplex configurations with a wide range of options and accessories, you can customize mROY® metering pumps for your most complex process needs.

Specifications and regulations. Our metering pumps meet all applicable regulations anywhere in the world where they operate. The Milton Roy mRoy® pump also complies with API 675 specifications.

Injection of chemicals such as biocides, polymers, scale and corrosion inhibitors, salt and wax inhibitors, process additives and many more for the following areas of application:

Chemical and petrochemical processing
Boilers
Oil and gas production
Food
Power generation

There is a lot of exciting stuff going on in the stars above us that make astronomy so much fun. The truth is the universe is a constantly changing, moving, some would say “living” thing because you just never know what you are going to see on any given night of stargazing.

But of the many celestial phenomenons, there is probably none as exciting as that time you see your first asteroid on the move in the heavens.

Flow rate up to 9.2 gph (34.8 l/hr) and pressure rating up to 3000 PSI (207 bar)
Ambient temperature up to 20°F (-6°C) to 120°F (49°C) on standard product
Liquid temperature up to 50°F (10°C) to 300°F (149°C) with modifications on standard product
Turndown ratios up to 10:1 with constant speed motor
Accuracy ± 1.0% and Repetitive accuracy ± 3.0%

Broad Range of Chemicals
mRoy XW Series Metering pump

mROY® series model XW metering pump is controlled-volume, hydraulically-actuated diaphragm pump that is designed for consistent chemical delivery. Its compact design contains a plunger that reciprocates at a fixed stroke, displacing a fixed volume of hydraulic fluid and thereby actuating a flexible, chemically inert PTFE diaphragm to create the pumping action. Designed to meet global industry standards, model XW provides accurate dosing of a broad spectrum of fluids. Like all mROY® metering pumps, model XW is built to run continually all year long leading to decades of consistent performance.

Hydraulically balanced PTFE diaphragm, designed for 96,000 hours operating life, does not use seals and eliminates plunger packing maintenance.
Liquid end bleed system makes it easier to commission a new or a newly maintained pump.
Worm and pinion drive operating in an oil bath lubrication produces a smooth mechanical motion that eliminates wear and tear of mechanical lost motion designs and assures long gear and bearing life.
Dust-tight cast iron housing provides a rugged enclosure for operation in the harshest plant and field environments.
Micrometer capacity adjustment enables accurate output flow control.
Internal hydraulic pressure relief valve automatically protects the pump’s hydraulic system from over pressure conditions.
High-performance, adjustable, cartridge-type check valves provide positive, repeatable sealing on every pump stroke.
The pump meets standards for API 675.

Injection of chemicals such as biocides, polymers, scale and corrosion inhibitors, salt and wax inhibitors, process additives and many more for the following areas of application:

Chemical and petrochemical processing
Boilers
Oil and gas production
Food
Power generation

Flow rate up to 9.2 gph (34.8 l/hr) and pressure rating up to 3000 PSI (207 bar)
Ambient temperature up to 20°F (-6°C) to 120°F (49°C) on standard product
Liquid temperature up to 50°F (10°C) to 300°F (149°C) with modifications on standard product
Turndown ratios up to 10:1 with constant speed motor
Accuracy ± 1.0% and Repetitive accuracy ± 3.0%

Consistent Performance
mRoy XT Series Metering Pump

mROY® series model XT metering pump is controlled-volume, hydraulically-actuated diaphragm pump that is designed for consistent chemical delivery. Its compact design contains a plunger that reciprocates at a fixed stroke, displacing a fixed volume of hydraulic fluid and thereby actuating a flexible, chemically inert PTFE diaphragm to create the pumping action. Designed to meet global industry standards, model XT provides accurate dosing of a broad spectrum of fluids. Like all mROY® metering pumps, model XT is built to run continually all year long leading to decades of consistent performance.

Hydraulically balanced PTFE diaphragm, designed for 96,000 hours operating life, does not use seals and eliminates plunger packing maintenance.
Liquid end bleed system makes it easier to commission a new or a newly maintained pump.
Worm and pinion drive operating in an oil bath lubrication produces a smooth mechanical motion that eliminates wear and tear of mechanical lost motion designs and assures long gear and bearing life.
Dust-tight cast iron housing provides a rugged enclosure for operation in the harshest plant and field environments.
Micrometer capacity adjustment enables accurate output flow control.
Internal hydraulic pressure relief valve automatically protects the pump’s hydraulic system from over pressure conditions.
High-performance, adjustable, cartridge-type check valves provide positive, repeatable sealing on every pump stroke.
The pump meets standards for API 675.

Injection of chemicals such as biocides, polymers, scale and corrosion inhibitors, salt and wax inhibitors, process additives and many more for the following areas of application:

Chemical and petrochemical processing
Boilers
Oil and gas production
Food
Power generation

Flow rate up to 2.2 gph (8.3 l/hr) and pressure rating up to 3000 PSI (207 bar)
Ambient temperature up to 20°F (-6°C) to 120°F (49°C) on standard product
Liquid temperature up to 50°F (10°C) to 300°F (149°C) with modifications on standard product
Turndown ratios up to 10:1 with constant speed motor
Accuracy ± 1.0% and Repetitive accuracy ± 3.0%

High Performance
mRoy MRB Series

The mROY® series model B metering pump is controlled-volume, hydraulically-actuated diaphragm pump that is designed for consistent chemical delivery. Its compact design contains a plunger that reciprocates at a fixed stroke, displacing a fixed volume of hydraulic fluid and thereby actuating a flexible, chemically inert PTFE diaphragm to create the pumping action. Designed to meet global industry standards, model B provides accurate dosing of a broad spectrum of fluids. Like all mROY® metering pumps, model B is built to run continually all year long with preventative maintenance, leading to decades of consistent performance.

Hydraulically balanced PTFE diaphragm, designed for 96,000 hours operating life, does not use seals and eliminates plunger packing maintenance.
Liquid end bleed system makes it easier to commission a new or a newly maintained pump.
Worm and pinion drive operating in an oil bath lubrication produces a smooth mechanical motion that eliminates wear and tear of mechanical lost motion designs and assures long gear and bearing life.
Dust-tight cast iron housing provides a rugged enclosure for operation in the harshest plant and field environments.
Micrometer capacity adjustment enables accurate output flow control.
Internal hydraulic pressure relief valve automatically protects the pump’s hydraulic system from over pressure conditions.
High-performance, adjustable, cartridge-type check valves provide positive, repeatable sealing on every pump stroke.
The pump meets standards for API 675.

Injection of chemicals such as coagulants, biocides, disinfectants, polymers, softening agents, acids and bases for pH control, scale and corrosion inhibitors, oxygen scavengers, process additives, and many more for the following areas of application:

Municipal water & wastewater treatment
Industrial water & wastewater treatment
Chemical and petrochemical processing
Cooling towers and boilers
Oil and gas production
Pharmaceuticals production
Power generation
Agriculture

Flow rate from 3.3 gph (12.5 l/hr) up to 79 gph (299 l/hr)
Hydraulically balanced diaphragm with 96,000 hour design life
Turndown ratios up to 100:1 for a full range of adjustments based on plant treatment requirements
Accuracy ± 1.0% over a 10:1 turndown ratio

Critical Process Control
mRoy MRA Series

mROY® series model A metering pump is controlled-volume, hydraulically-actuated diaphragm pump that is designed for consistent chemical delivery. Its compact design contains a plunger that reciprocates at a fixed stroke, displacing a fixed volume of hydraulic fluid and thereby actuating a flexible, chemically inert PTFE diaphragm to create the pumping action. Designed to meet global industry standards, model A provides accurate dosing of a broad spectrum of fluids. Like all mROY® metering pumps, model A is built to run continually all year long with preventative maintenance, leading to decades of consistent performance.

Hydraulically balanced PTFE diaphragm, designed for 96,000 hours operating life, does not use seals and eliminates plunger packing maintenance.
Liquid end bleed system makes it easier to commission a new or a newly maintained pump.
Worm and pinion drive operating in an oil bath lubrication produces a smooth mechanical motion that eliminates wear and tear of mechanical lost motion designs and assures long gear and bearing life.
Dust-tight cast iron housing provides a rugged enclosure for operation in the harshest plant and field environments.
Micrometer capacity adjustment enables accurate output flow control.
Internal hydraulic pressure relief valve automatically protects the pump’s hydraulic system from over pressure conditions.
High-performance, adjustable, cartridge-type check valves provide positive, repeatable sealing on every pump stroke.
The pump meets standards for API 675.

Municipal water & wastewater treatment
Industrial water & wastewater treatment
Chemical and petrochemical processing
Cooling towers and boilers
Oil and gas production
Pharmaceuticals production
Power generation
Agriculture

Flow rate from 0.20 gph (0.8 l/hr) up to 79 gph (299 l/hr)
Hydraulically balanced diaphragm with 96,000 hour design life
Turndown ratios up to 100:1 for a full range of adjustments based on plant treatment requirements
Accuracy ± 1.0% over a 10:1 turndown ratio

Viscosity	up to 600 cps
Max flow rate *	70 l/min

Dip tube	Ø 42 mm
Hose holder	Ø 25 mm
Operating temperature	da 3° a 65° C
Total weight in kg	1,4 for lenght of 900 mm · 1,7 for lenght of 1200 mm
Material dip tube	Polypropylene
Material shaft	HASTELLOY or AISI 316
Material impeller	ECTFE
Material suction outlet	Polypropylene
Material seal gasket in contact with the fluid – MIM	Viton®
Lenght mm	900 or 1200

Power	0,42 HP (300 Watt)
Max flow rate	70 l/min
Viscosity	600 cps
Density	1,2 g/cm3
Weight in kg	1,1

Viscosity	up to 600 cps
Max flow rate *	70 l/min

Dip tube	Ø 40 mm
Hose holder	Ø 25 mm
Operating temperature	da 3° a 95° C
Total weight in kg	1,6 for lenght of 900 mm · 1,9 for lenght of 1200 mm
Material dip tube	PVDF
Material hose holder	HASTELLOY
Material impeller	ECTFE
Material suction outlet	ECTFE
Material seal gasket in contact with the fluid – MIM	Viton®
Lenght mm	900 o 1200

Product fitting	G 3″ f
Air fitting	Ø 8 mm
Operating pressure	Min 2 Bar – Max 8 Bar
Application	Boxer 503
Weight	23 kg
Operating temperature	from +3°C to +65°C
Dimension (mm)	398 x 516

Product fitting	G 3″ f
Air fitting	Ø 8 mm
Operating pressure	Min 2 Bar – Max 8 Bar
Application	Boxer 503
Weight	23 kg
Operating temperature	from +3°C to +65°C
Dimension (mm)	398 x 516

Product fitting	G 3″ f
Air fitting	Ø 8 mm
Operating pressure	Min 2 Bar – Max 8 Bar
Application	Boxer 503
Weight	28,5 kg
Operating temperature	from +3°C to +95°C
Dimension (mm)	398 x 516

Product fitting	G 3″ f
Air fitting	Ø 8 mm
Operating pressure	Min 2 Bar – Max 8 Bar
Application	Boxer 503
Weight	29 kg
Operating temperature	from +3°C to +95°C
Dimension (mm)	356 x 352

General Pump

NH-125PS-F

NH-150PS-F

NH-200PS-Z

NH-200PS-F

NH-250PS-F

NH-275PS-F

NH-250PS-F-3E

NH-300PS-F

MENU

PRODUCTS

TRP Pneumatic Motor

Performance

Application sectors

TRF Pneumatic Motor

Performance

Application sectors

TRA Pneumatic Motor

Performance

Application sectors

TRP Electric Motor

Performance

Application sectors

TRF Electric Motor

Performance

Application sectors

TRA Electric Motor

Performance

Application sectors

Equaflux 303

ATEX ZONE 2 - STANDARD ON ALL MODELS

ATEX ZONE 1 - AVAILABLE ON REQUEST

Equaflux 302

ATEX ZONE 2 - STANDARD ON ALL MODELS

ATEX ZONE 1 - AVAILABLE ON REQUEST

Equaflux 200

ATEX ZONE 2 - STANDARD ON ALL MODELS

ATEX ZONE 1 - AVAILABLE ON REQUEST

Technical Specifications

Equaflux 100

ATEX ZONE 2 - STANDARD ON ALL MODELS

ATEX ZONE 1 - AVAILABLE ON REQUEST

Equaflux 51

ATEX ZONE 2 - STANDARD ON ALL MODELS

ATEX ZONE 1 - AVAILABLE ON REQUEST

IM 200

Application sectors

IM 180

Application sectors

IM 160

Application sectors

IM 155

Application sectors

IM 150

Performance<img class="width-100" style="font-size: 16px" src="https://www.debem.com/wp-content/uploads/2022/03/Curva-Rendimento-IM150.png" alt="Curva-Rendimento-IM150" width="800" height="650" />

Application sectors

IM 140

Application sectors

IM 130

Performance<img class="width-100" style="font-size: 16px" src="https://www.debem.com/wp-content/uploads/2022/03/Curva-Rendimento-IM130.png" alt="Curva-Rendimento-IM130" width="800" height="650" />

Application sectors

IM 120

Performance<img class="width-100" style="font-size: 16px" src="https://www.debem.com/wp-content/uploads/2022/03/Curva-Rendimento-IM120.png" alt="Curva-Rendimento-IM120" width="800" height="650" />

Application sectors

IM 110

Performance

Application sectors

IM 95

Performance

Application sectors

IM 90

Application sectors

IM 80

Performance<img class="width-100" style="font-size: 16px" src="https://www.debem.com/wp-content/uploads/2022/03/Curva-Rendimento-IM80.png" alt="Curva-Rendimento-IM80" width="800" height="650" />

Application sectors

MB 180

Performance

Application sectors

Technical Specifications

MB 160

Performance

Performance

Performance

Performance
